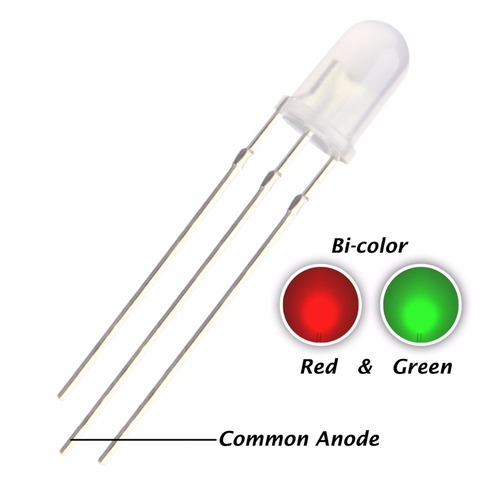

LED Bi Colour
5mm Red Green
Product Code: LA0290
$0.80
Pay it in 4 payments of $0.20 with
| Buy 1+ | $0.80 (incl. GST) |
| Buy 10+ | $0.70 (incl. GST) |
| Buy 50+ | $0.60 (incl. GST) |
| Buy 100+ | $0.50 (incl. GST) |
| Specifications | Values | |
| TYPE | Visible | |
| PEAK WAVELENGTH COLOUR 1 (nm) | 635 | |
| PEAK WAVELENGTH COLOUR 2 (nm) | 565 | |
| LUMINOUS INTENSITY COLOUR 1 (IVtyp) (mcd) | 10 | |
| LUMINOUS INTENSITY COLOUR 2 (IVtyp) (mcd) | 10 | |
| MATERIAL | GaAsP/GaP | |
| LENS COLOUR | Clear @ 5 | |
| LENS TYPE | Water clear | |
| VIEWING ANGLE (degrees) | 30 | |
| EMITTED COLOUR 1 | Hi-Efficiency Red | |
| EMITTED COLOUR 2 | Green | |
| PINOUT | 3-lead C/C | |
| CONNECTION | Common cathode | |
| DIAMETER (mm) | 5 | |
| HEIGHT (mm) | 8.6 | |
| LEAD LENGTH (mm) | 25 | |
| LEAD PITCH (mm) | 2.54 | |
| MOUNTING TYPE | Through hole | |
| FLANGE | Yes | |
| LUMINOUS INTENSITY COLOUR 1 (IVmin) (mcd) | 5 | |
| LUMINOUS INTENSITY COLOUR 2 (IVmin) (mcd) | 5 | |
| FORWARD VOLTAGE COLOUR 1 (VFtyp) (V) | 2 | |
| FORWARD VOLTAGE COLOUR 2 (VFtyp) (V) | 2.1 | |
| FORWARD VOLTAGE COLOUR 1 (VFmax) (V) | 2.6 | |
| FORWARD VOLTAGE COLOUR 2 (VFmax) (V) | 2.6 | |
| VF SPECIFIED AT CURRENT (mA) | 20 | |
| PACKING STYLE | Bulk | |
| PACKAGE STYLE | Round |
