LED 5.0mm Flashing (difused)

Green

Product Code: LA0073

This product was discontinued on .

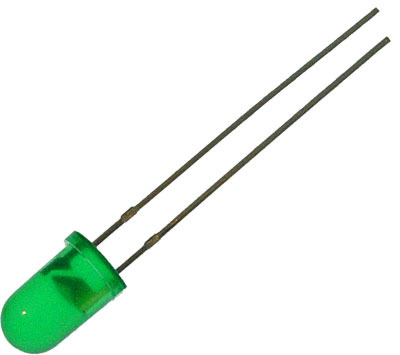

Flashing Green LED in standard 5mm package.
Green diffused package.
Luminous intensity 80mcd max at 9V.
Recommended operating voltage 9V to 12V.
Minimum operating voltage 3.5V.
Maximum operating voltage 13V.
The cathode is the short lead.


Specifications
Peak wavelength: 625nm
Current at VF = 9 to 12V: 38 to 56mA
Current at 3.5V/13V: 6mA/70mA
Power dissipation: 200mW
Viewing angle: 60?
