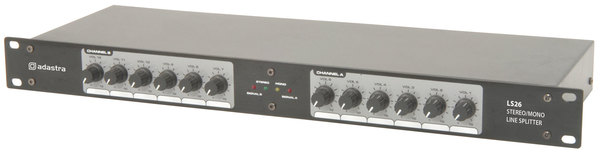

Line Splitter - Stereo 6 Way or Mono 12 Way
Unbalanced 6.35mm Jacks, Volume control per output
Product Code: 953.022
$189.00
Pay it in 4 payments of $47.25 with
| Buy 1+ | $189.00 (incl. GST) |
Line Splitter - Stereo 6 Way or Mono 12 Way
Signal splitter with 2 line inputs which are buffered and divided across 6 outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups.
- Up to 12 outputs from 1 or 2 inputs
- Individual volume control for each output
- Input peak LEDs
- Power supply230Vac, 50Hz (IEC)
- InputsA & B, (6.3mm jack)
- Outputs1 - 6 & 7 - 12 (6.3mm jack)
- Input impedance20k Ohms
- Output impedance220 Ohms
- Frequency response20Hz - 20kHz, +0/-1dB
- Signal to noise ratio>95dB
- THD<0.008%
- Dimensions483 x 44 x 170mm
- Weight2.0kg
