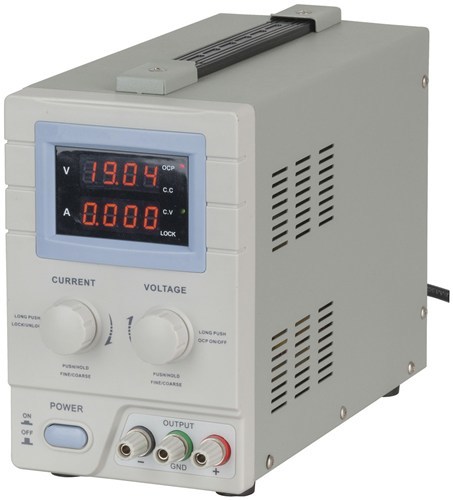

0 to 30VDC 0 to 5A Regulated Power supply
Product Code: EMP3840
Power your devices with accuracy and the confidence that only comes with a professional lab power supply. Select precise voltage level and current limits to prevent overheating, burnout, and over-current. Of course the output is short-circuit protected too. The compact construction uses surface mount technology and a powerful internal cooling system to deliver a highly flexible power source. With ripple voltage a tiny 1mV, you know you’re getting precisely the voltage required, reducing the risk of burnout or damage when testing and prototyping sensitive components. Output voltage is adjustable from 0 to 30VDC, and output current can be limited between 0 and 5A. Banana plug/binding posts provide output on the front of the unit, while a bright LED display keeps you informed. Includes a short banana to alligator lead set.
Features:
• Precise voltage level and current limit settings
• 1mV ripple voltage
• Avoid overheating, burnout, and over-current
• Easy-to-use LEDdisplay panel
• Input voltage: 220-240AC 50-60Hz
• Output voltage: 0-30VDC adjustable (10mV accuracy)
• Output current: 0-5A adjustable (1mA accuracy)
• Ripple current: 3mA
| Width | 120mm |
| Height | 185mm |
| Weight | 4.8kg |
| Length | 270mm |
| Type of Power Supply | Laboratory |
| Regulation Type | Regulated |
| Voltage Display | |
| Current Display | |
| Output Connection | Banana 4mm (standard),Binding Post Terminals |
| Number of Outputs | 1pc |
| Ripple Voltage | 1mV |
| AC Frequency | 50Hz |
| AC Voltage rating | 230V |
| DC Voltage | 30V |
| DC current rating | 5A |
| Frequency | 50Hz |
| Mains Item connection | Standard IEC320 (C13/C14) |
| Mains lead included | |
| Mains Voltage Range | 220V-240V |
| Rated for AU Mains |
