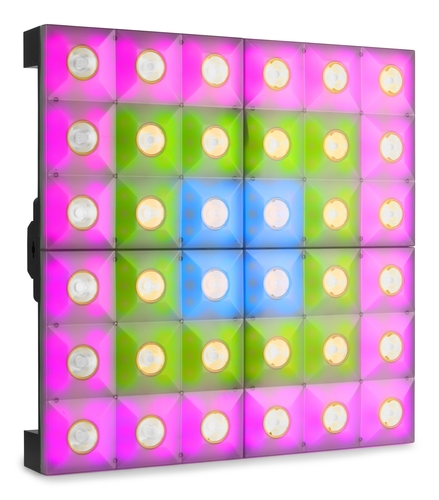

Hybrid LED Panel Pixel Control

Product Code: 150.675

$699.00

Pay it in 4 payments of $174.75 with Afterpay

Buy 1+ $699.00 (incl. GST)
LCB366 Hybrid LED Panel Pixel Control

The LCB388 is a hybrid LED panel equipped with 36x 3W Warm White LEDs and 216x SMD RGB LEDs for spectacular backlight effect. The LEDs can be programmed in single pixels for stunning chase effects. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated. It’s also possible to create your own mixture of colours in RGB mode (for background light). The extra power connector output enables you to simply link the power of multiple units together into a single socket. It’s also equipped with a rigging system for a quick and easy way to build an LED wall.

  • 36x 3W Warm White LEDs for sharp 5° beams
  • 216x SMD RGB LEDs (backlight)
  • Single pixel control
  • RDM/DMX protocols
  • Built-in programs
  • Silent operation, natural convection cooling system.
  • Linking multiple panels together with quick locks
  • o-LED colour display
  • Electronic Dimming: 0 - 100%
  • Power Connector TR input/output
Specifications
Lightsource Single colour LED, 3-in-1 LED
LED Colours Red, Green, Blue, Warm White
LED Power (W) 3
Quantity of LEDs 36
LED Power:Backlight (W) SMD
Quantity of Backlight LED's 216
Beam angle (degrees) 5
Field angle (degrees) 10
Illuminance (lx) 15000 lx @ 1m
Flash rate per second 0 - 20Hz
DMX Channels 8, 144
DMX Connector 3-pin XLR
Modes Automatic programs, DMX, Manual, Master/Slave
Cooling Convection
Display oLed
Power Plug Power-connector
Power consumption 1.8 - 0.9A
Power Supply 240VAC 50Hz
Dimensions (L x W x H) 500 x 500 x 80mm
Weight (kg) 6,70
Accessories Mounting bracket, Power Cable
