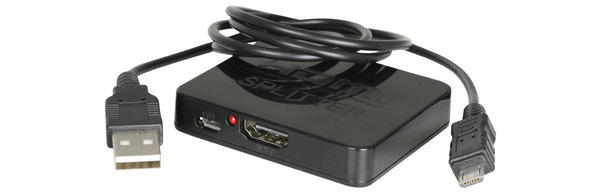

4K Mini HDMI Splitter 1x2

This 4K compatible mini HDMI splitter allows a single HDMI source to be connected to two displays at the same time. Supplied with an additional USB power lead should it be required, it can also be placed at the end of a long HDMI cable to regenerate the signal.

• Small form factor chassis
• No power needed, unit works using the power carried by your HDMI cables
• Live output LEDs
• Supports 4K, up to 1080p, 3D and up to 36bit colour image formats

• Supports DTS-HD, Dolby-trueHD, DTS/Dolby-AC3, DSD HD (HBR) formats
• HDCP2.2 Compliant
• Supplied with additional USB power cable to use if required

• HDMI version1.4a
• Video format4K, Up to 1080p @ 60Hz, 3D, 36bit deep colour
• Audio formatDTS-HD, Dolby-trueHD, DTS/Dolby-AC3, DSD HD(HBR)
• Operating temperature range-15 to +55°C
• Max. bandwidth340MHz

• Max. baud rate3.4Gbps
• Max. working current350mA
• Dimensions62 x 51 x 11mm
• Weight31g
