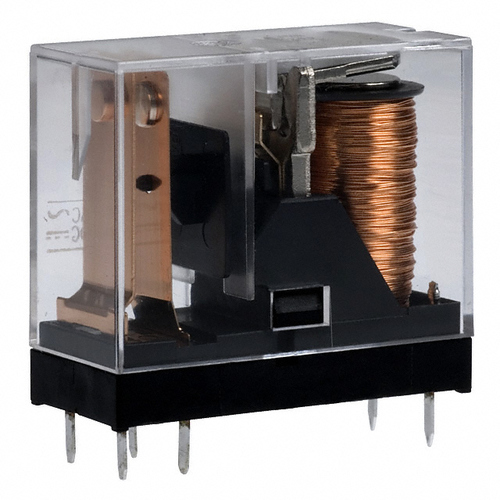

Relay 240 VAC Coil - Omron - 16A 230v AC Contact
240 VAC Coil
Product Code: RL0290
$5.50
Pay it in 4 payments of $1.38 with
| Buy 1+ | $5.50 (incl. GST) |
| Buy 5+ | $5.21 (incl. GST) |
| Buy 10+ | $4.92 (incl. GST) |
| Buy 25+ | $4.63 (incl. GST) |
Jump to:
240 AC Relay, 240 AC Coil,
16A 230v AC 30A DC Contact
SP/ST N/O
240v AC, 28 x 25 x 12mm
| Classification | High-capacity | |
| Number of poles | 1-pole | |
| Load | Resistive | Inductive |
| Item | load | load |
| (cosφ = 0.4; | ||
| L/R = 7 ms) | ||
| Contact type | Single | |
| Contact material | Ag-alloy (Cd free) | |
| Rated load | 16 A at 250 VAC | 8 A at 250 VAC |
| 16 A at 30 VDC | 8 A at 30 VDC | |
| Rated carry current | 16 A | |
| Max. switching voltage | 380 VAC, 125 VDC | |
| Max. switching current | 16 A | |
| Failure rate (P level) | 100 mA at 5 VDC | |
| (reference value) * |
