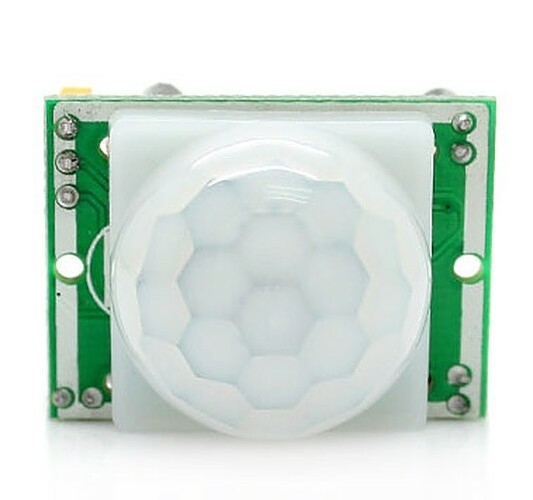

PIR Motion Sensor Module Security Infra-red
HC-SR501
Product Code: MOD0170
$7.50
Pay it in 4 payments of $1.88 with
| Buy 1+ | $7.50 (incl. GST) |
| Buy 5+ | $7.10 (incl. GST) |
HC-SR501 Pyroelectric Infrared Motion Sensor
A handy small device used for detectiing movement in alarms or robotics A good additionl for PICAXE and Arduino, other development systems.
Has on board pots for adjustment of detection range and output time.
Sensitivity Setting: turn to right, distance increases (approx 7M); turn to left, distance decreases (approx 3M)
Time Setting: turn to right, time increases (approx 300S); turn to left, time decreases (approx 5S).
Just hook up power and monitor the output line with your Arduino or Picaxe
Specifications:
Color: White + Green
Dimension: 3.2cm x 2.4cm x 1.8cm (approx)
The sensitivity and holding time can be adjusted
Working Voltage Range: DC 4.5V- 20V
Current drain:<60uA
Voltage Output: High/Low level signal:3.3V TTL output
Detection distance: 3--7M(can be adjusted)
Detection range: <140°
Delay time: 5-200S(can be adjusted, default 5s +-3%)
Blockade time: 2.5 S (default)
