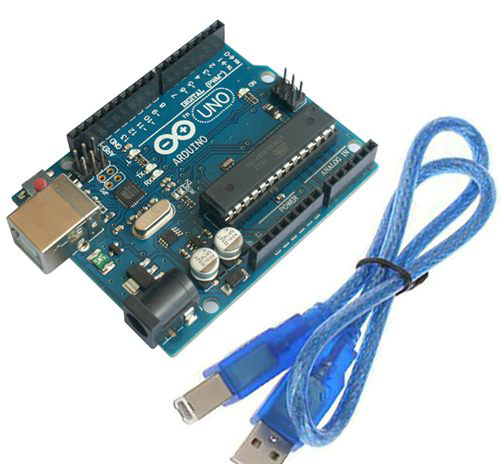

Arduino Uno R3 Clone with USB Cable

MEGA328P ATMEGA16U2

Product Code: MOD0280

$22.50

Pay it in 4 payments of $5.62 with Afterpay

Buy 1+ $22.50 (incl. GST)
Buy 10+ $21.40 (incl. GST)

The Arduino Uno Clone is an easy to use, open source controller. Simply connect to a pc and begin using.

The Arduino Uno Clone is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.


More details can be found at http://www.arduino.cc/

Arduino Uno R3

Microcontroller - ATmega328P
Operating Voltage - 5V
Input Voltage (recommended) - 7-12V
Digital I/O Pins - 14 (of which 6 provide PWM output)
Analog Input Pins - 6
DC Current per I/O Pin - 40 mA
DC Current for 3.3V Pin - 50 mA
Flash Memory - 32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM - 2 KB (ATmega328)
EEPROM - 1 KB (ATmega328)
Clock Speed - 16 MHz

Revision 3 of the board has the following new features:
1. Solves the original 2560 board not being compatible with win7 and win8
2. increase the pin socket , to facilitate the use of DuPont line.
3. Atmega 16U2 replace the 8U2


Package List:
1x UNO R3 Development Board
1x USB Cable
