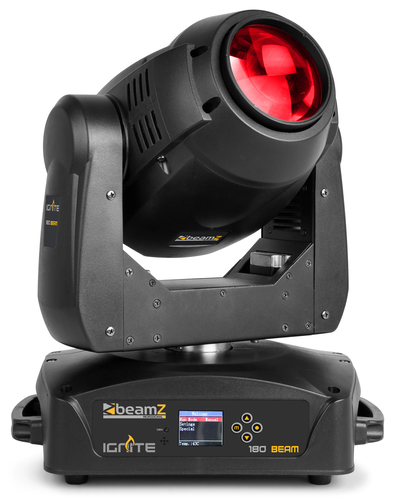

IGNITE180B LED Beam Moving Head
The IGNITE180B is a powerful LED moving head with a 180W bright white LED source. Equipped with a double gobo wheel (with interchangeable gobos) to create stunning overlay effects. Combined with 2 individually rotating prisms (8+16) to make stunning aerial effects in 8 colours. The 8 degrees beam angle make this the ideal fixture to use for long range gobo projection and sharp beam figures.

  • 180W High Intensity LED
  • 13 or 17 DMX channels
  • DMX and Stand-alone mode
  • Master/slave synchronization
  • Sound activated with adjustable sensitivity
  • Auto mode
  • Beam angle 8°
  • Gobo Wheel 1: 3x glass and 3x metal gobos + open (interchangeable)
  • Gobo Wheel 2: 8x metal gobos + open
  • Gobo functions: gobo shake and gobo rotation
  • 7 Colours + open
  • Split colour, rainbow effect
  • Rotatable 8 facet prism
  • Rotatable 16 facet prism
  • Motorized focus
  • 0-100% Electronic Dimmer
  • Strobe: 0-20Hz
  • Automatic pan/tilt correction
  • Reset function
  • Control panel with full-colour LCD display
  • DMX in/output via 3-pin XLR
  • Powerconnector input/output
  • Quick lock omega clamp included (2x)
  • DMX cable included
  • Powerconnector cable included
SPECIFICATIONS
Head movement:Pan 540°
Head movement:Tilt 270°
Beam angle
No. of colours 7 colours + open
No. of gobos 6 rotating, 8 static + open
No. of LEDs 1x 180W
Flash rate per second 0-20Hz
DMX channels 13 or 17
Power supply 240Vac / 50Hz
Consumption 250W
Dimensions 330 x 210 x 360mm
Weight 11 kg

Pdficon Info / Manual
