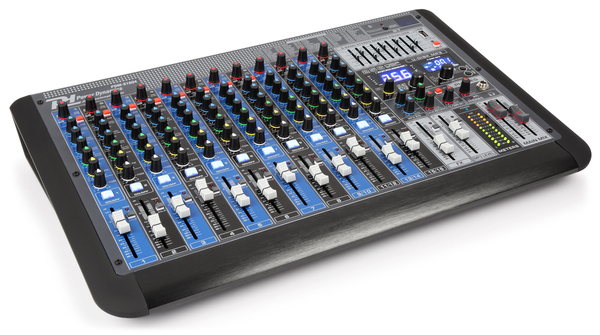

16 Channel Professional Analog Mixer
USB and Bluetooth Receiver
Product Code: 172.626
$749.00
Pay it in 4 payments of $187.25 with
| Buy 1+ | $749.00 (incl. GST) |
The Power Dynamics PDM-1604 6-channel mixing console with 24-bit multi-FX processor is perfect for professional mixing of various music sources. This multi-channel mixer is equipped with a built-in BT receiver with smartphone holder and an MP3-compatible USB port. 16 channels for a variety of external audio accessories such as microphones and line equipment can be mixed to create a unique sound experience using a comprehensive effects section. The optimum sound control of all output signals is guaranteed at all times thanks to a 9-band equalizer. Even condenser and ribbon microphones work perfectly with a switchable + 48V phantom power. The PDM-S1604 is the ideal all-round mixer for studio applications of all kinds, and convinces both beginners and professionals alike with its diverse capabilities.
- 10 Balanced mono microphone inputs (XLR)
- 8 Balanced mono line inputs (6.3mm Jack)
- 4 Balanced stereo line inputs (6.3mm Jack)
- +48V phantom power
- Stereo line input (RCA)
- 75Hz Low cut filter channel 1-8
- Multi-FX processor with 256 presets
- Solo switch per channel (PFL)
- On/off switch per channel
- Hi, Mid and Low control for each channel
- Adjustable FX, Pan, Trim per channel
- Aux send per channel
- 9-band Equalizer
- Stereo balanced main outputs (XLR + 6.3mm Jack)
- Separate control room, headphones and stereo rec outputs
- Built-in USB player with digital display
- BT-receiver for audio streaming
- LED VU meter and Peak LED's
| Frequency response | 10Hz -45kHz (±3dB) |
| THD | <0.01% |
| DSP Resolution | 24-bit |
| Type of effects | Hall, Room, Chapel, Plate, Spring, Gated rev, Reverse, Early refl, Ambience, Stadium, Delay, Echo, Gate, Chorus, Flanger, Phaser, Pitch, Reverb, Leslie, Flang, Ping pong delay |
| Presets | 256 |
| Signal to noise ratio | >112dB |
| Output level | +/- 1V |
| Input:Line | +/- 150mV |
| Input:Mic | +/- 1.5mV |
| Power supply | 240VAC / 50Hz |
| Dimensions | 520 x 335 x 95mm |
| Weight | 6.0kg |
