5-Channel Mixer with Amplifier
DSP/ Bluetooth / SD / USB / MP3
Product Code: 172.573
$369.00
Pay it in 4 payments of $92.25 with
| Buy 1+ | $369.00 (incl. GST) |
Jump to:

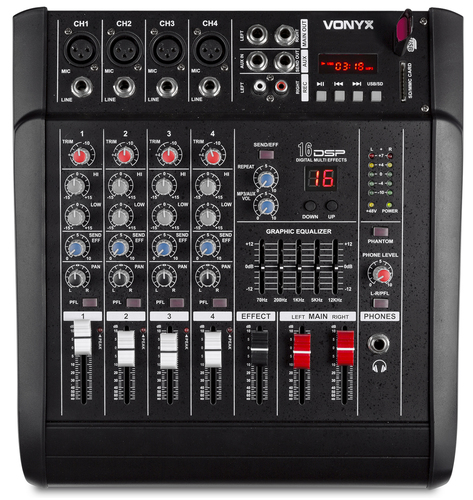

AM5A 5-Channel Mixer with Amplifier DSP/BT/SD/USB/MP3
This 5-channel mixer holds a 2x 500W amplifier. Giving the user a complete unit as base for this setup. With 4 microphone and line inputs it's ideal for live performers on stage. 16 digital effects give you plenty of room to fine tune your sound.
- 2x 500W power amplifier
- MP3 player with USB port and SD slot
- Using BT wireless technology for audio streaming
- +48V phantom power
- Single 7 band EQ
- 16 digital effects (DSP)
- PFL per channel
- RCA line input
- Tone control per channel
- 6.3mm outputs (L+R)
| Output power: 4 Ohms | 2x 500W |
| Output power: 8 Ohms | 2x 300W |
| Frequency response | 20Hz - 20kHz |
| THD | <0.1% |
| Equalizer: High | ± 15dB / 12kHz |
| Equalizer: Low | ± 15dB / 70Hz |
| Input:Line | +5dB ~ -40dB |
| Input:Mic | -15dB ~ -60dB |
| Output level | +12dB (3V) |
| Output:Record | 0dB (775mV) |
| Headphone output | 300mW @ 32Ohm |
| Headphone:Impedance | 32Ohm |
| Signal to noise ratio | >90dB |
| Power supply | 230VAC / 50Hz |
| Dimensions | 320 x 300 x 140mm |
| Weight | 5.9kg |
